Soil Geocell Application for Landslide Stabilization

Geocells, a type of geosynthetic material made from polymer strips welded into a flexible, three-dimensional honeycomb-like structure, are highly effective for slope stabilization and erosion control in landslide-prone areas. The installation process typically involves the following key steps:

1. Site Preparation: The first step is to clear and grade the slope surface. Loose debris, vegetation, and unstable soil are removed. The goal is to create a relatively uniform and compacted subgrade. Proper drainage pathways should also be considered at this stage to prevent water accumulation behind the structure.

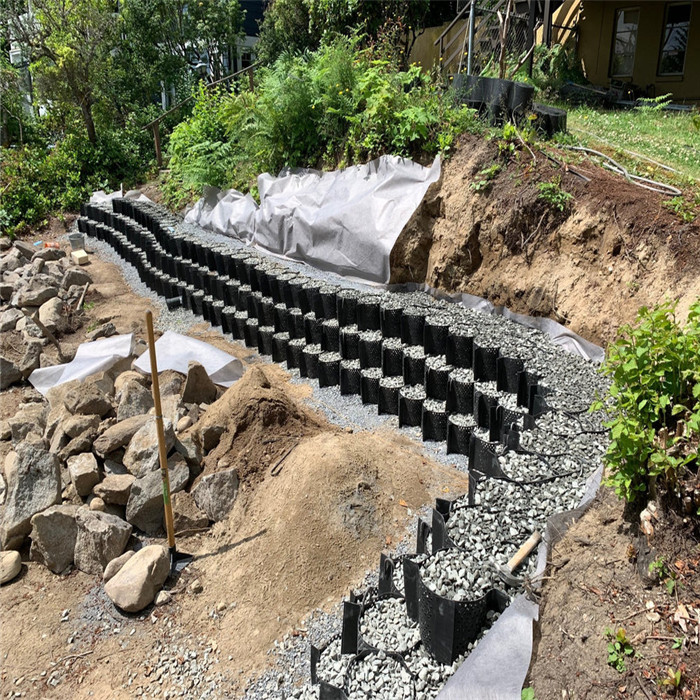

2. Geocell Placement: The collapsed geocell panels are transported to the site and stretched out across the prepared slope. They are anchored securely into place using stakes or anchors, especially at the top and on the face of the slope, to prevent movement during filling and under load.

3. Infilling: The open cells are then filled with locally available materials such as soil, sand, gravel, or crushed rock. The infill material is compacted in layers to achieve high density and interlocking within the cells, forming a rigid mattress-like structure.

4. Vegetation (Optional): In some cases, the surface can be seeded or hydro-mulched to establish vegetation. The roots from the plants provide additional binding and erosion control, creating a more natural and sustainable reinforced slope.

Key Advantages and Benefits:

1. Superior Confinement and Load Distribution: The three-dimensional cellular structure effectively confines the infill material, significantly increasing its shear strength and stiffness. This creates a coherent, monolithic slab that distributes imposed loads (such as the weight of the slope itself or surface traffic) over a wider area. This greatly enhances the overall stability of the slope and prevents surface soil from sliding.

2. Flexibility and Durability: Geocells are flexible and can conform to irregular ground surfaces without losing their structural integrity. They are also manufactured from durable, UV-resistant polymers that withstand harsh environmental conditions, including freeze-thaw cycles and chemical degradation, ensuring long-term performance with minimal maintenance.

3. Cost-Effectiveness and Environmental Friendliness: This technique often proves more economical than traditional methods like concrete retaining walls or extensive gabion structures. It utilizes on-site or locally available infill materials, drastically reducing transportation and material costs. Furthermore, its permeable nature allows for natural drainage, and when vegetated, it blends with the environment, promoting ecological restoration.
