Geotube

Key Features

1. High Strength & Durability

• Woven from polypropylene (PP) or polyester (PET) materials with high tensile strength and long service life.

• Resistant to acids, alkalis, and UV rays, suitable for harsh environments.

2. Flexible Installation

• Can be filled on-site with sand, gravel, or concrete for rapid construction of protective structures.

• Supports both manual and mechanized installation, significantly improving efficiency.

3. Eco-Friendly

• High permeability reduces water flow impact and promotes ecological balance.

• Supports vegetation growth, integrating engineering with the natural environment.

4. Cost-Effective

• Saves 30%~50% in costs compared to traditional gabions or concrete structures.

• Easy to transport and store, reducing logistics expenses.

Applications

✅ Riverbank Stabilization: Prevents erosion and guides water flow.
✅ Slope Reinforcement: Stabilizes soil slopes, preventing landslides.

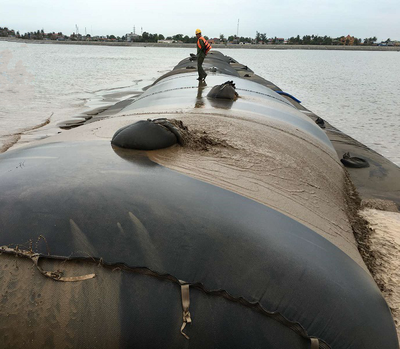

✅ Coastal Protection: Resists wave scouring and safeguards shorelines.
✅ Emergency Flood Control: Rapid stacking for temporary flood barriers.

Technical Specifications

• Material: Polypropylene (PP) / Polyester (PET) woven fabric

• Dimensions: Standard diameter from 1m to 5m (custom lengths available)

• Tensile Strength: ≥25 kN/m

• Permeability: Complies with ISO 11058 standards

Why Choose GeoTube?

✔ Superior Performance – Cylindrical design provides better structural integrity than traditional bags
✔ Versatile Applications – Suitable for both permanent and temporary installations
✔ Environmentally Friendly – Can be filled with local materials, reducing transport costs

Contact us for samples or technical inquiries!
