GEOMAT

  • 3D geomat

3D geomat

  • 1. Core Functions of 3D Vegetation Geomats
  • Root Reinforcement: 3D mesh structure enhances root anchoring strength by 3-5x

  • Microclimate Regulation: Maintains 20-30% higher soil moisture vs. bare ground

  • Erosion Control: Reduces soil loss by 90% on 45° slopes (per ASTM D6459)


  • Online orders
  • 2. Optimal Vegetation Selection

    Plant TypeSurvival RateRoot DepthApplication Scenario
    Tall Fescue95%+30-50cmHighway slopes
    Bermuda Grass90%+15-30cmArid regions
    Vetiver98%+100-300cmHigh-erosion areas
    White Clover85%+10-20cmEcological restoration

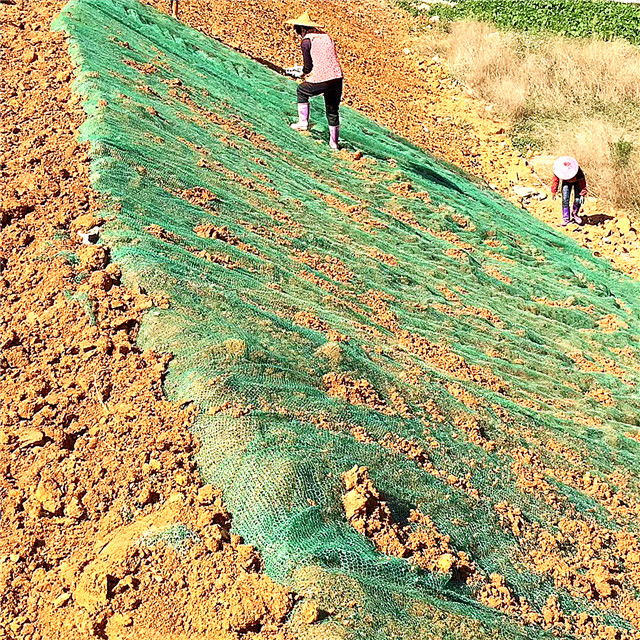

    plastic three dimensions geomat for slope protection (2).jpg

    Seed Mix Formula Example:

    • 50% perennial ryegrass (rapid establishment)

    • 30% fescue (drought resistance)

    • 20% wildflowers (biodiversity)


    3. Cultivation Process

    3.1 Pre-Planting Preparation

    ✔ Slope Treatment:

    • Grade to ≤1:1.5 (34°) for machine operation

    • Apply 5cm growth substrate (pH 6.0-7.5)

    ✔ Mat Selection:

    • Standard Type: 15mm PP mesh (for general use)

    • Reinforced Type: 20mm PET+PP composite (for steep slopes)

    3.2 Planting Techniques

    1. Hydraulic Seeding:

      • Spray rate: 80-100g/m² seed + mulch

      • Pressure: 0.6-0.8MPa (nozzle diameter ≥8mm)

    2. Manual Sowing:

      • Drill seeding depth: 1-2cm

      • Coverage: 3-5 seeds/cm²

    3.3 Maintenance Protocol

    • First 30 Days:
      ✓ Daily mist irrigation (5-10mm/day)
      ✓ Weekly liquid fertilizer (N-P-K 20-10-10)

    • Establishment Phase:
      ✓ Mow at 10cm height (first cutting at 15cm)
      ✓ Apply slow-release fertilizer quarterly


    4. Performance Monitoring

    IndicatorMeasurement MethodTarget Value
    Coverage RateQuadrat sampling≥90% at 60 days
    Root DensityCore sampling≥15 roots/cm²
    Shear StrengthIn-situ vane test≥25kPa
    Erosion ControlSediment traps≤0.3kg/m²/year

    5. Special Applications

    • Mine Reclamation: Combine with mycorrhizal fungi inoculation

    • Coastal Protection: Use salt-tolerant Spartina grasses

    • Urban Green Walls: Install vertical cultivation systems


    Common Mistakes to Avoid:
    ✖ Over-compacting growth substrate
    ✖ Using invasive plant species
    ✖ Neglecting first-year maintenance

    Keywords: Vegetation establishment technology, Slope greening, Root zone reinforcement, Ecological engineering


    Technical Support Services:
    → Custom seed mix formulation
    → Remote vegetation monitoring
    → Erosion risk assessment

    (Complies with ISO 16260 (Vegetated Slope Standards) and ASTM D7322 (Erosion Control Performance Testing))
