3D geomat

Key Features

1. Slope Stabilization

• Erosion Control: Reduces soil loss by 85-95% under 50mm/hr rainfall

• Load Distribution: Enhances slope stability (FOS improvement from 1.2 to 1.8)

2. Vegetation Support

• Root Anchorage: 3D structure allows 2-3x deeper root penetration vs. bare soil

• Moisture Retention: Holds 15-25L/m² of water for plant establishment

3. Material Properties

• Tensile Strength: 8-15kN/m (ASTM D4595)

• UV Resistance: ≤5% strength loss after 2000 hrs exposure

• Degradability: Bio-based options available (2-5 year degradation cycle)

Technical Specifications

Installation Process

1. Site Preparation

• Clear debris and grade slope to ≤1:1.5 (V:H)

• Apply starter fertilizer (NPK 10-10-10 @ 50g/m²)

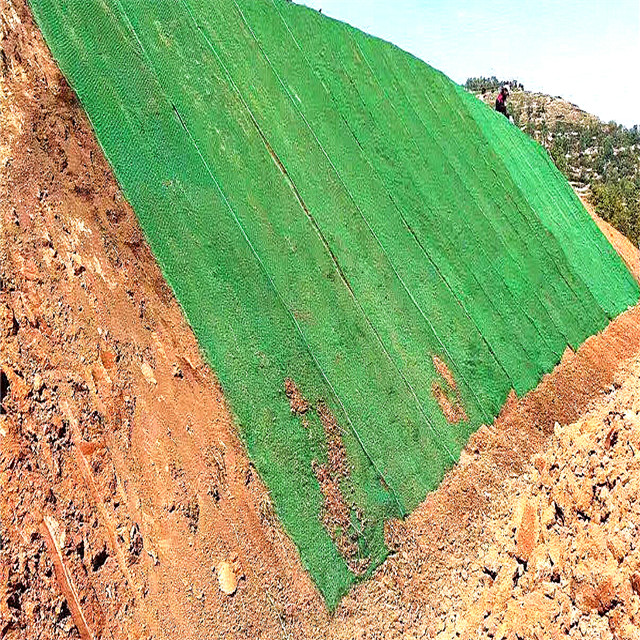

2. Mat Deployment

• Unroll top-to-bottom with 5% overlap

• Secure with 12-16 staples/m² (minimum 500N pullout resistance)

3. Vegetation Establishment

• Hydroseeding: Apply 80g/m² seed mix (grass:legume:shrub = 3:1:1)

• Initial Maintenance: 20L/m²/week irrigation for 60 days

Performance Data

▸ Vegetation Coverage: ≥80% within 90 days
▸ Sediment Control: ≤0.5kg/m²/year soil loss
▸ Design Life: 5-8 years (degradable) / 15+ years (synthetic)

Applications

✔ Transportation Infrastructure: Highway/railway embankments
✔ Mine Rehabilitation: Acidic slopes (pH 3-6 tolerance)
✔ Urban Landscaping: Park slopes and retaining walls

Standards Compliance

• ASTM D7106: Erosion control mat testing

• EN 13252: Hydraulic performance requirements

• ISO 13426: Connection strength verification

Title: "3D Vegetation Mat Systems: Integrated Slope Stabilization and Ecological Restoration Solution"

Sustainable Advantages:
◉ Carbon Sequestration: 2-4 ton CO₂/ha/year
◉ Biodiversity: Supports 30+ native plant species
◉ Recyclable: HDPE versions 100% recyclable

Cost Analysis:

• Material: $3-8/m²

• Installation: $2-5/m²

• ROI Period: 2-3 years vs. concrete alternatives
